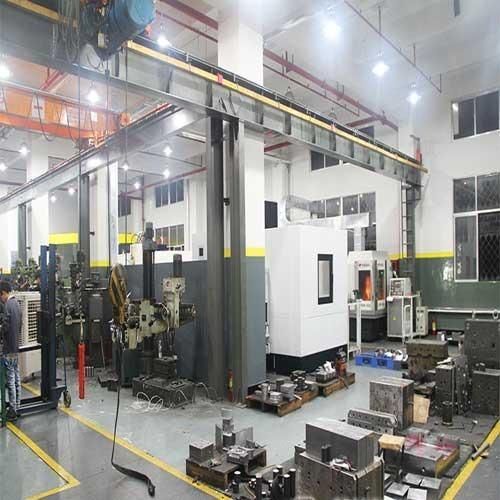

Die Cast Machine Reconditioning Services

Reconditioning Process comprises the following steps :

Taking apart complete toggle system and platens consisting of the following:

• Fix Platen
• Moving Platen
• End Platen
• Ejector Assy.
• Toggle (Long)
• Toggle (Short)
• Toggle Strap
• Toggle Head
• Tie bars

Detaching the following used up components /parts:

• Pins
• Shoes
• Brass Pads
• Circlips
• PB bushes
• Allen Screws
• Steel bushes (hardened)
• Strips fixed on the bed

Assembly of toggle system / hydraulic cylinder

• Pins
• Toggle long
• Toggle short
• Toggle strap
• Steel bushes
• Toggle head
• Ejector Cylinder
• Closing Cylinder
• Tie Rods / Guide Rods

Repairing / Welding of the following damaged components for toggle system

• Toggle long
• Toggle short
• Toggle strap

Machining / Scraping off the following assemblies/components

• Shoes
• Platens
• Toggle long
• Toggle short
• Toggle strap
• Toggle head
• Hardened strips
• Strips for bed
• All cylinder injection / ejector / closing
• Steel / Steel casted parts of toggle system

• Repair of Injection / Intensification Cylinder
• Platern Machining
